Introduction
www.utrustmetal.com
The Storage Bed Gas Lift Hinge is an innovative and practical component designed to enhance the functionality of storage beds. It provides an easy – to – use mechanism for lifting and supporting the bed base, allowing convenient access to the storage space underneath. This guide will walk you through the installation and usage of the gas lift hinge, ensuring you can make the most of your storage bed..
Product Overview

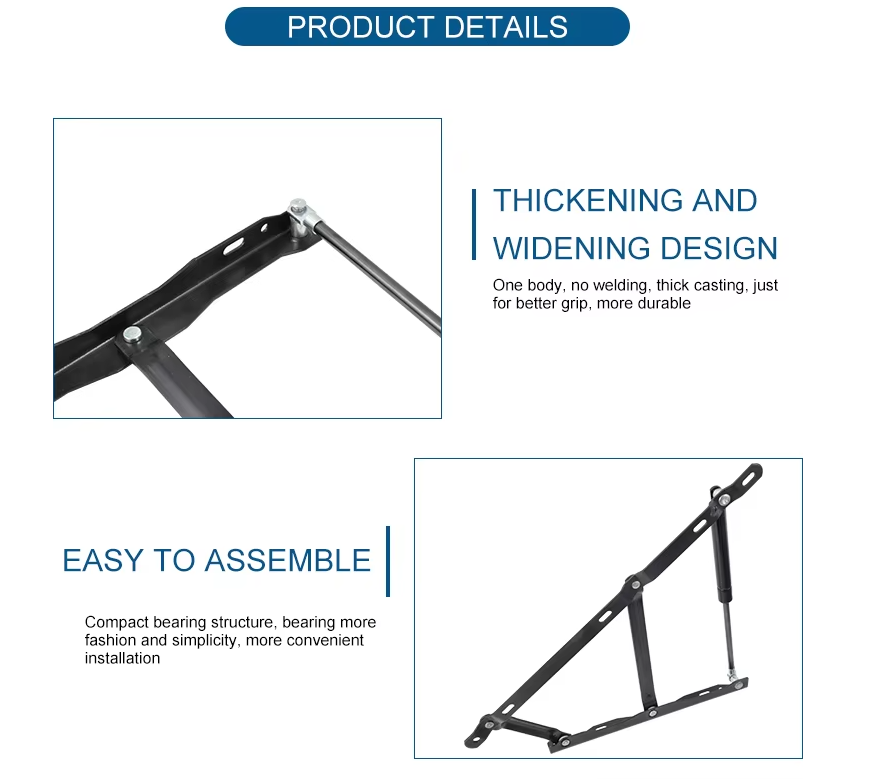

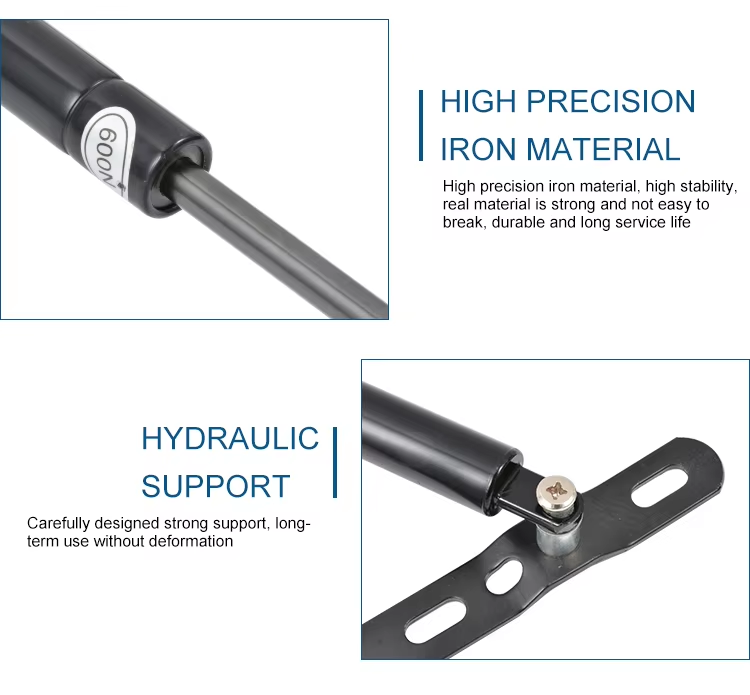

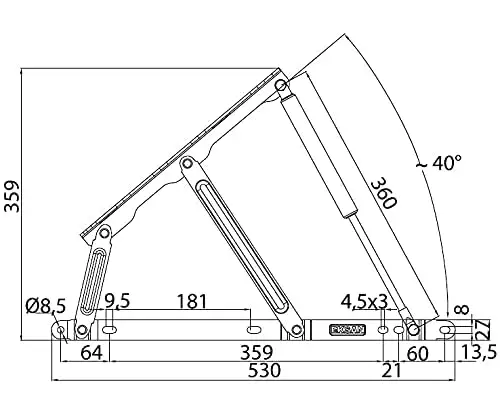

As shown in the image, the Storage Bed Gas Lift Hinge consists of a set of metal frames and a gas – filled cylinder. The metal frames are the structural support, which are designed to be attached to the bed frame and the bed base. The gas cylinder is the key component that provides the lifting and holding force. The hinge has several marked dimensions, such as 34 cm, 28 cm, 15.5 cm, and 54 cm, which are important for proper installation to ensure the hinge functions correctly.
Installation
Tools Required
- Screwdriver (Phillips or flat – head depending on the screws provided)
- Measuring tape
- Pencil
Step – by – Step Installation
1. Prepare the Bed Frame and Base
- Ensure that the bed frame and the bed base are clean and free of any debris. Lay them out in a stable and accessible work area.
- Determine the position for installing the gas lift hinges. Usually, two hinges are recommended for a standard – sized bed. Measure and mark the positions on both the bed frame and the bed base according to the dimensions of the hinge. The marked positions should be symmetric on both sides of the bed to ensure balanced lifting.
2. Attach the Hinge to the Bed Frame
- Take one of the gas lift hinges. Align the bottom part of the hinge (the part with the longer flat section as indicated by the 54 – cm dimension in the image) with the marked position on the bed frame.
- Use the provided screws and a screwdriver to secure the hinge to the bed frame. Make sure the screws are tightened firmly but avoid over – tightening, which may damage the wood or other materials of the bed frame.
3. Attach the Hinge to the Bed Base
- Lift the bed base slightly and align the upper part of the hinge (the part that will connect to the bed base) with the marked position on the bed base.
- Secure this part of the hinge to the bed base using the appropriate screws. Again, ensure a firm connection.
4. Repeat for the Second Hinge
- Follow the same steps to install the second gas lift hinge on the other side of the bed.
Usage
Lifting the Bed Base
- To access the storage space under the bed, stand at the foot or side of the bed.
- Gently lift the edge of the bed base. The gas lift hinge will assist in raising the bed base smoothly. As you lift, the gas cylinder inside the hinge will extend, providing the necessary force to hold the bed base in the raised position. Keep lifting until the bed base reaches the desired height.
- The hinge is designed to hold the bed base securely in place, allowing you to freely access the storage area underneath without the fear of the bed base falling down.
Closing the Bed Base
- When you are done using the storage space, slowly and carefully lower the bed base. The gas lift hinge will gradually retract as you lower the bed base.
- Make sure to guide the bed base down evenly to avoid any misalignment or damage to the hinge. Once the bed base is fully lowered, it will rest securely on the bed frame.
Maintenance
- Regularly check the screws that attach the gas lift hinge to the bed frame and base. Over time, due to the movement of the hinge, the screws may loosen. Tighten them if necessary.
- Keep the hinge clean. Wipe it with a dry cloth to remove dust and dirt. Avoid using harsh chemicals or abrasive materials, as they may damage the surface of the metal parts.
- If you notice any unusual noises, such as squeaking or clicking, during the operation of the hinge, it may indicate a problem. In this case, it is advisable to inspect the hinge for any signs of wear or damage. If the issue persists, contact the manufacturer or a professional for assistance.
By following these installation, usage, and maintenance guidelines, you can ensure that your Storage Bed Gas Lift Hinge functions smoothly and efficiently, providing you with easy access to the storage space under your bed for years to come.
